Parameter	PRO 10	PRO 6	VARIO	MASTER	MasterPlat MAX
Table top thickness	10 mm	6 mm	10 mm	6 mm	6 mm
Chamfered and milled holes	✔️	✔️	-	-	-
Milled table top edges	✔️	✔️	✔️	✔️	✔️
Table sidewall height	150 mm	100 mm	65 mm	100 mm	50 mm
Number of grids of holes on the 4 sides	3	2	-	2	1
Tolerance on flatness for a table	±0.3 mm	±0.3 mm	±0.5 mm	±0.5 mm	±0.5 mm
Holes manufacturing tolerance	±0.2 mm	±0.15 mm	±0.15 mm	±0.15 mm	±0.15 mm
Side wall deflection tolerance	±0.33°	±0.5°	±0.5°	±0.5°	±1°
Leg profile	80x80x3 mm	80x80x3 mm	50x50x2 mm	50x50x2 mm	bent 45x45x4 mm
Maximum load, 4 legs	1000 kg	1000 kg	1000 kg	800 kg	800 kg
Number of ribs	⭐️⭐️⭐️	⭐️⭐️⭐️	⭐️	⭐️⭐️	⭐️
Rib height	max 115 mm	max 94 mm	max 50 mm	max 60 mm	max 45 mm
	PRO 10	PRO 6	VARIO	MASTER	MasterPlat MAX

PRO 10

Table top thickness	10 mm
Chamfered and milled holes	✔️
Milled table top edges	✔️
Table sidewall height	150 mm
Number of grids of holes on the 4 sides	3
Tolerance on flatness for a table	±0.3 mm
Holes manufacturing tolerance	±0.2 mm
Side wall deflection tolerance	±0.33°
Leg profile	80x80x3 mm
Maximum load, 4 legs	1000 kg
Number of ribs	⭐⭐⭐
Rib height	max 115 mm
	PRO 10

PRO 6

Table top thickness	6 mm
Chamfered and milled holes	✔️
Milled table top edges	✔️
Table sidewall height	100 mm
Number of grids of holes on the 4 sides	2
Tolerance on flatness for a table	±0.3 mm
Holes manufacturing tolerance	±0.15 mm
Side wall deflection tolerance	±0.5°
Leg profile	80x80x3 mm
Maximum load, 4 legs	1000 kg
Number of ribs	⭐️⭐️⭐️
Rib height	max 94 mm
	PRO 6

VARIO

Table top thickness	10 mm
Chamfered and milled holes	-
Milled table top edges	✔️
Table sidewall height	65 mm
Number of grids of holes on the 4 sides	-
Tolerance on flatness for a table	±0.5 mm
Holes manufacturing tolerance	±0.15 mm
Side wall deflection tolerance	±0.5°
Leg profile	50x50x2 mm
Maximum load, 4 legs	1000 kg
Number of ribs	⭐
Rib height	max 50 mm
	VARIO

Master

Table top thickness	6 mm
Chamfered and milled holes	-
Milled table top edges	✔️
Table sidewall height	100 mm
Number of grids of holes on the 4 sides	2
Tolerance on flatness for a table	±0.5 mm
Holes manufacturing tolerance	±0.15 mm
Side wall deflection tolerance	±0.5°
Leg profile	50x50x2 mm
Maximum load, 4 legs	800 kg
Number of ribs	⭐️⭐️
Rib height	max 60 mm
	MASTER

MasterPlat MAX

Table top thickness	6 mm
Chamfered and milled holes	-
Milled table top edges	✔️
Table sidewall height	50 mm
Number of grids of holes on the 4 sides	1
Tolerance on flatness for a table	±0.5 mm
Holes manufacturing tolerance	±0.15 mm
Side wall deflection tolerance	±1°
Leg profile	bent 45x45x4 mm
Maximum load, 4 legs	800 kg
Number of ribs	⭐️
Rib height	max 45 mm
	MasterPlat MAX

1 10

Umetalli

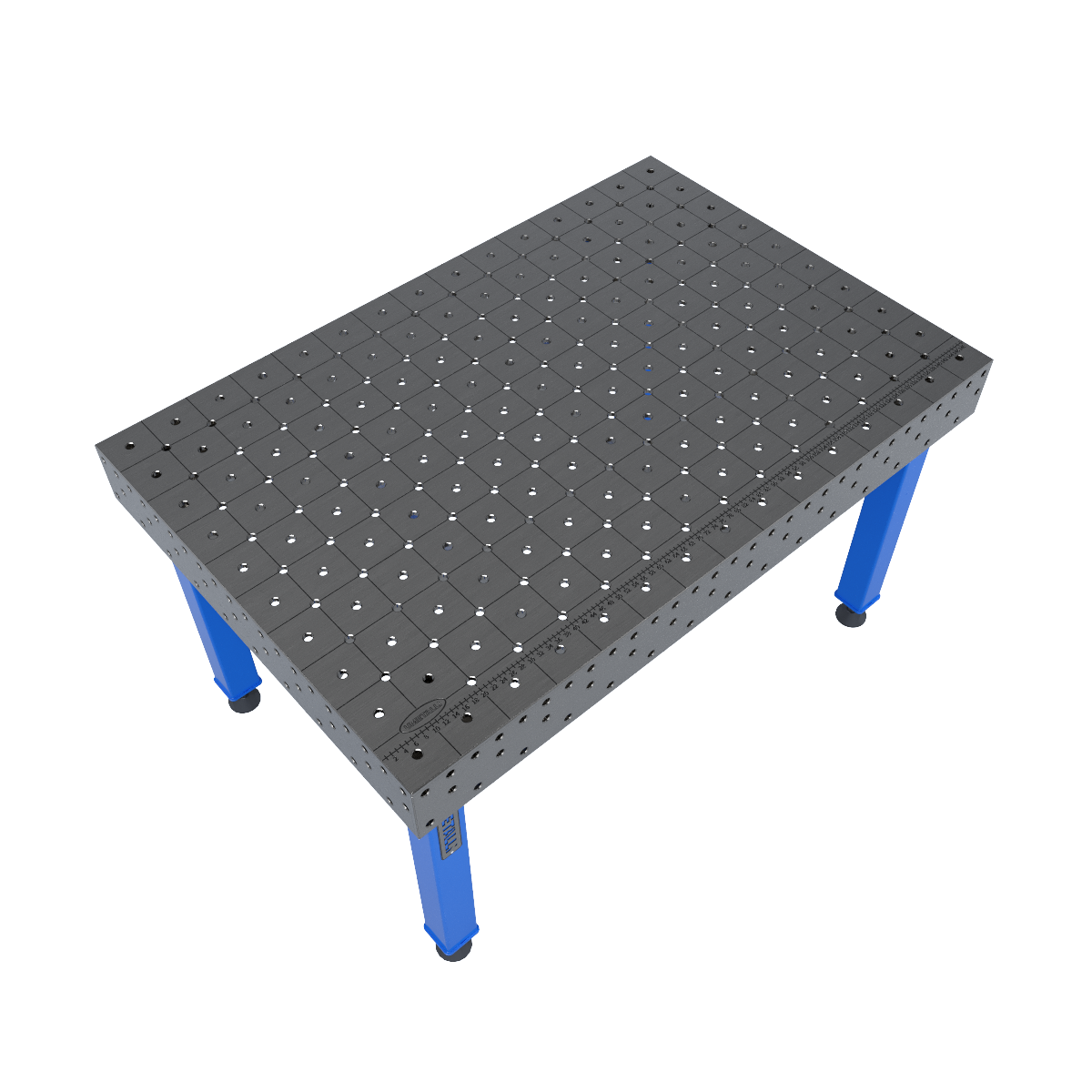

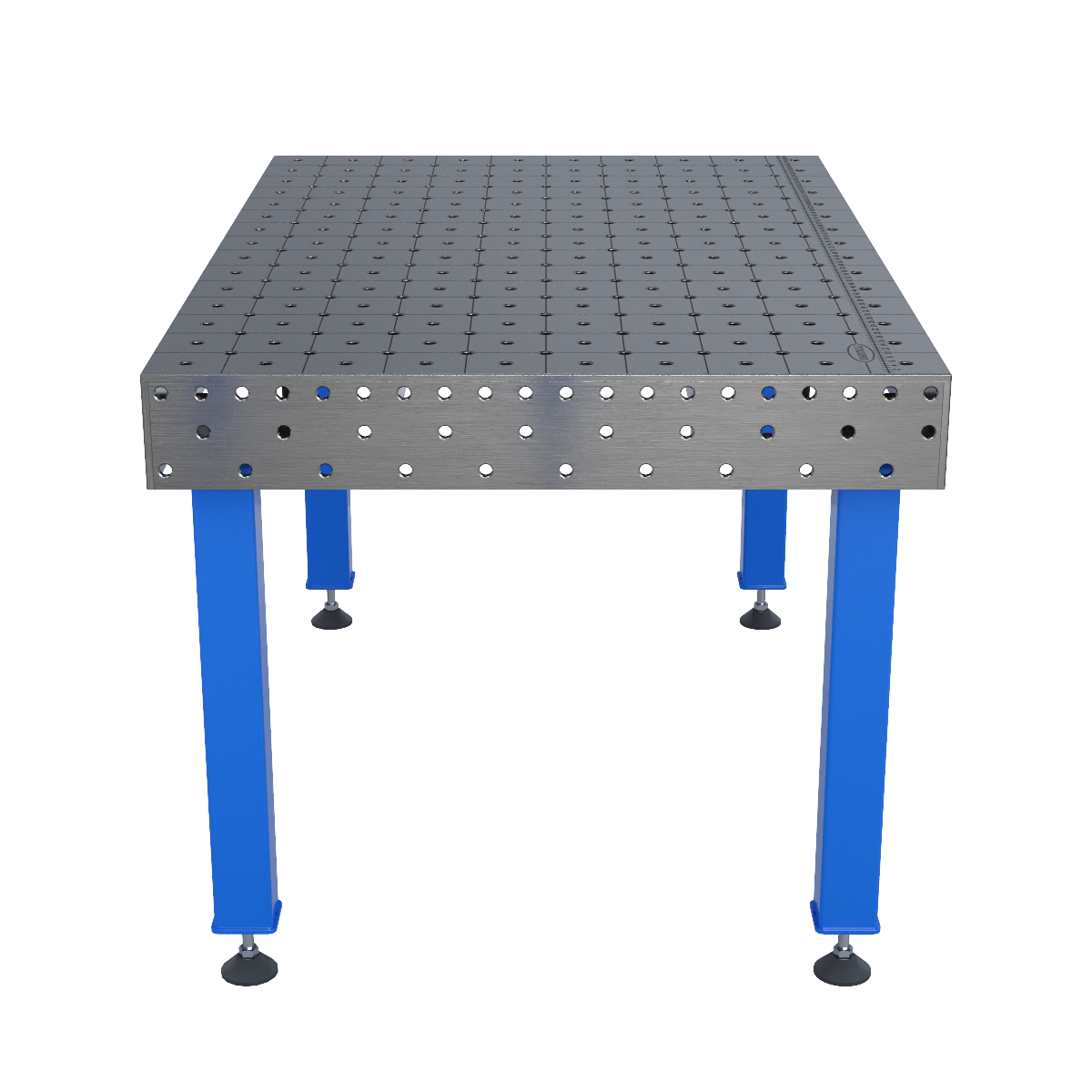

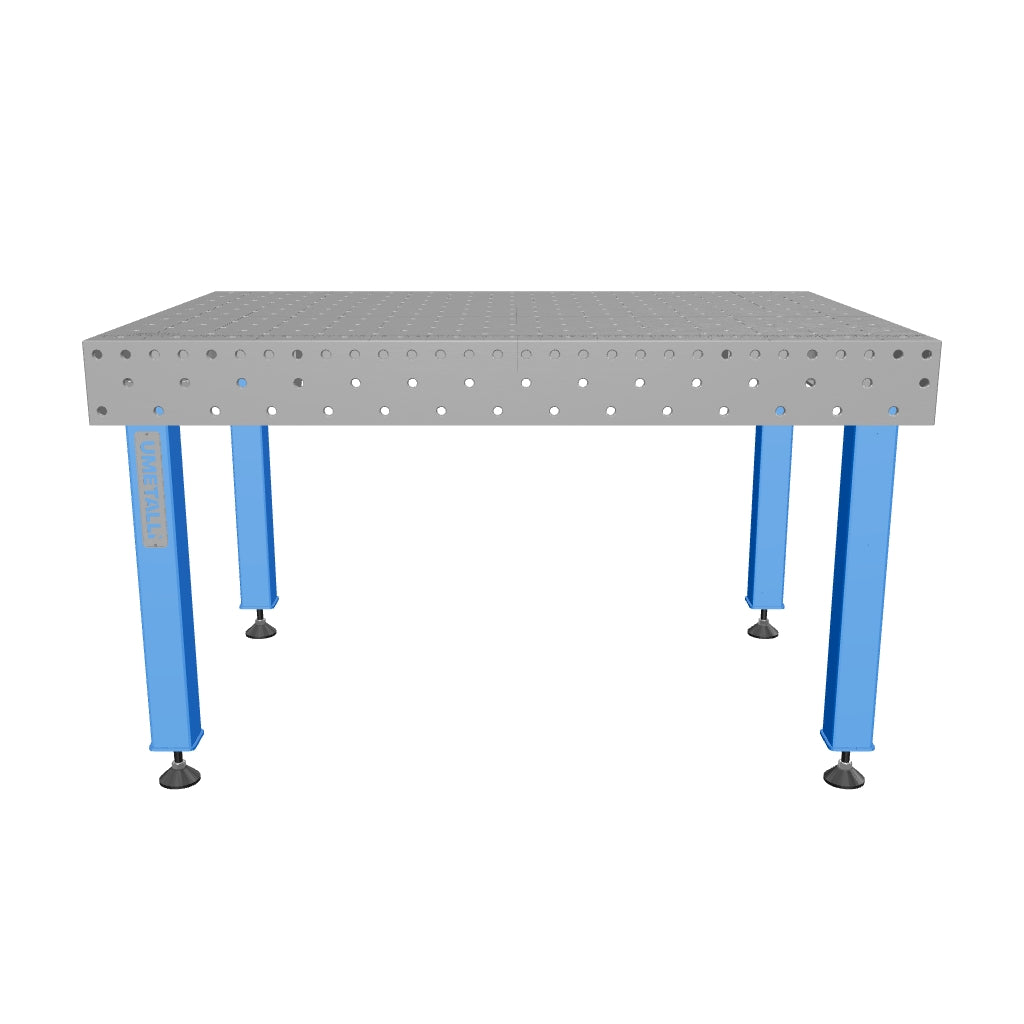

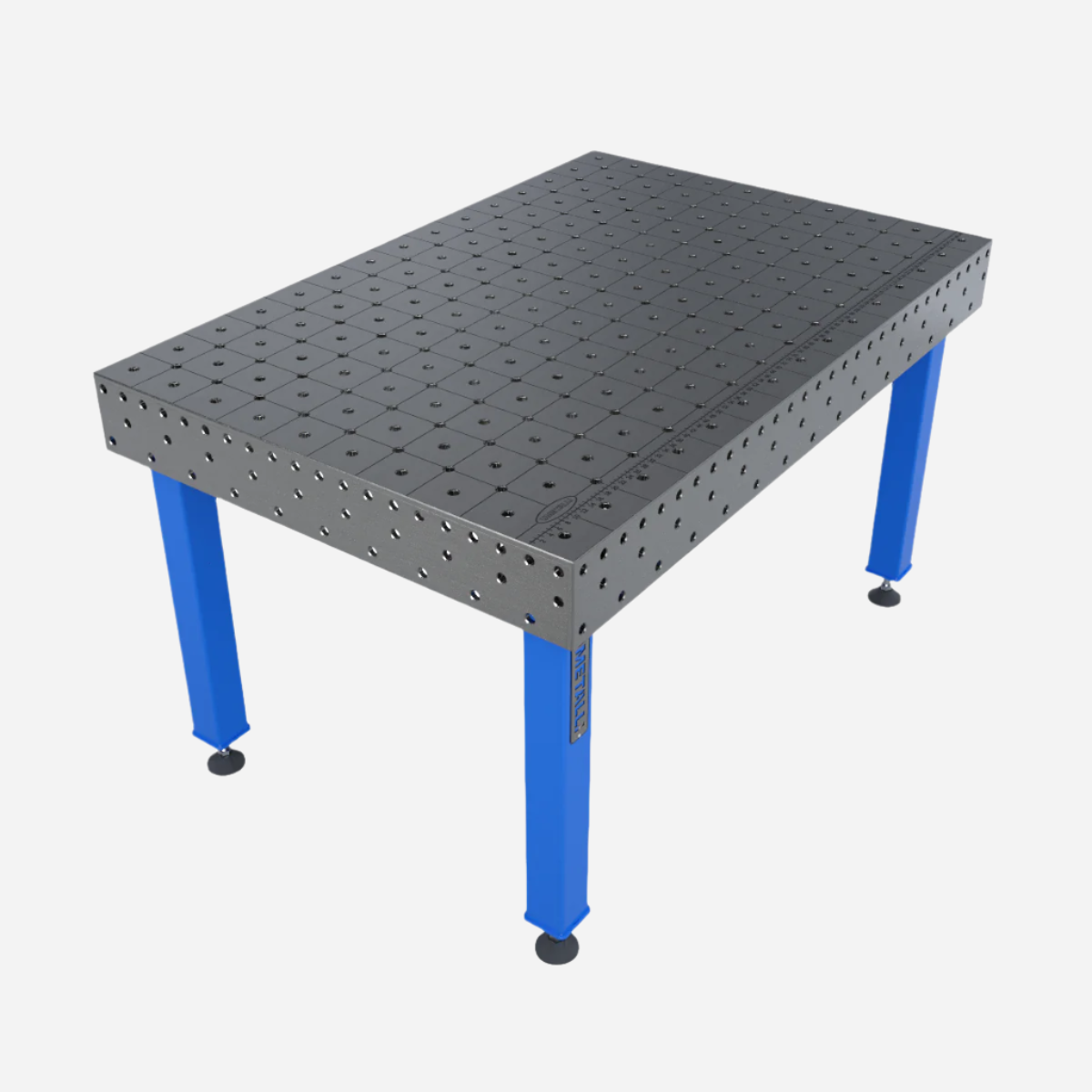

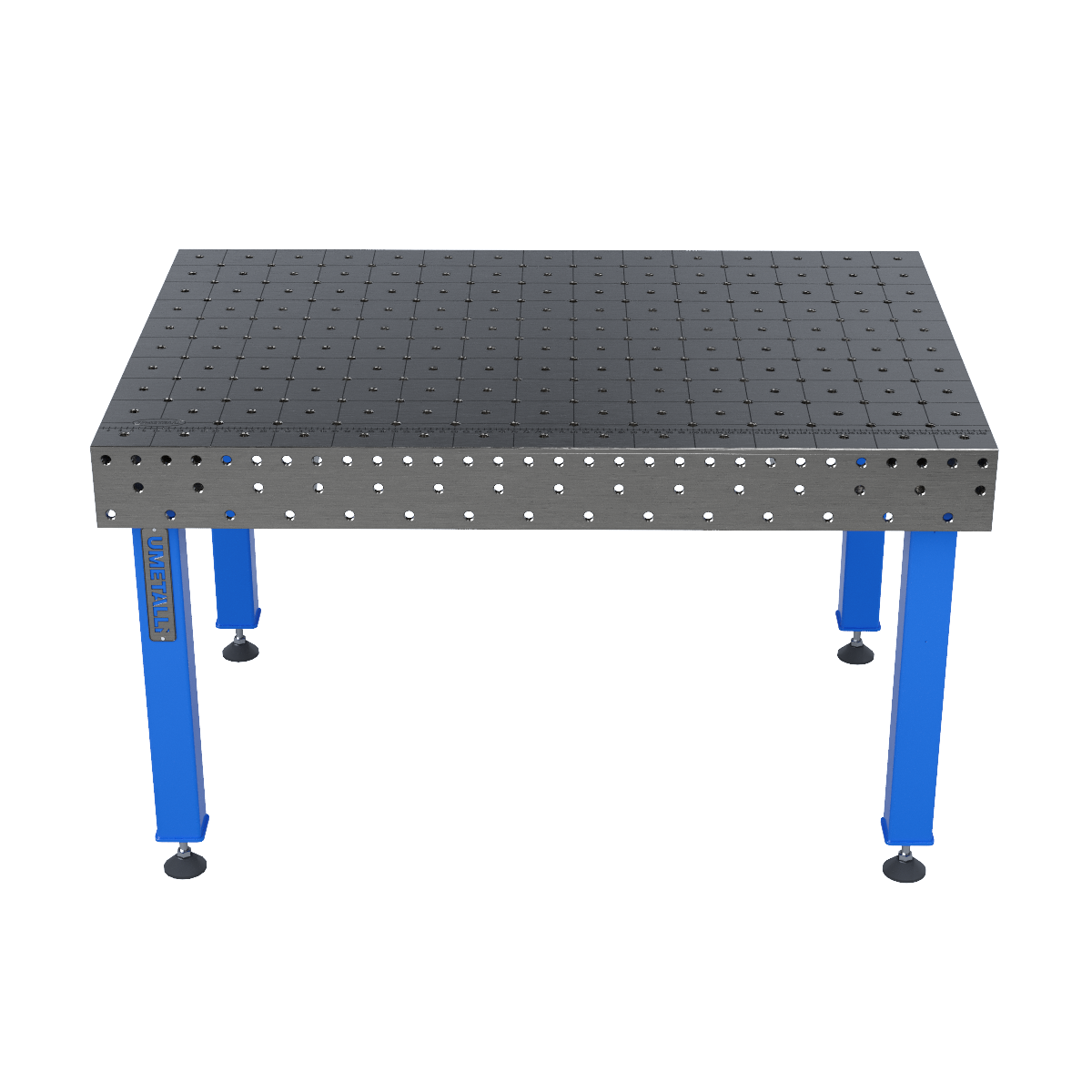

Welding Table PRO 10 1500x1000 Chess

SKU:WT-P10-S-150100-CH

1500x1000 mm
10 mm
820-920 mm
217.0 kg
16 mm
diagonal
80x80 mm
2000 kg

Tax excl.

~~25 642,66 kr~~ 19 232,00 kr

VAT 0%

Shipping calculated at checkout.

Features

Additional Features

🌐 Accessible from 5 sides, allowing for various configurations depending on your needs.
⚙️ High precision up to +/- 0.07 mm on all parts and flatness up to +/- 0.7 mm per 1000 mm. Side wall deflection tolerance: PRO 10 series - ±0,33°, PRO 6 series and MASTER series - ±0.5°, MasterPlat MAX and MasterPlat series - ±1.
🛠 Specialized stiffening ribs and original assembly technology ensure a perfectly flat working surface

Technologically

🖥 Utilizes CNC laser cutting for maximum precision
🔥 Manufactured using laser welding. This technology provides uniform heating and eliminates stress in the weld seam, improving both the aesthetic appearance and strength of the product

Tech Specs

Maximum load: 1000 kg
Work area: 1500x1000 mm
Height: 850-900 mm
Material thickness: 10 mm
Grid: Diagonal
Borehole: Ø16 mm
Leg size: Square 80x80 mm
Legs: with adjustable stops
Weight: 217 kg

Packaging contents

Welding table
Legs
Accessory Bag
Owner's Manual

User Manual

User manual Umetalli PRO 10

Shiping and delivery

How long is the delivery time?

Production and warehouse processing time is 3-4 business days. Delivery time is 2-6 business days for general products and 10-15 business days for heavy and large products.

Where is the product shipped from?

Our warehouses are located in Helsinki, Finland.

How to get tracking information?

Tracking information will be updated on the "My Orders" page as soon as the package is shipped.

Production and warehouse processing time is 3-4 business days. Delivery time is 2-6 business days for general products and 10-15 business days for heavy and large products.

Where is the product shipped from?
Our warehouses are located in Helsinki, Finland.

How to get tracking information?
Tracking information will be updated on the "My Orders" page as soon as the package is shipped.

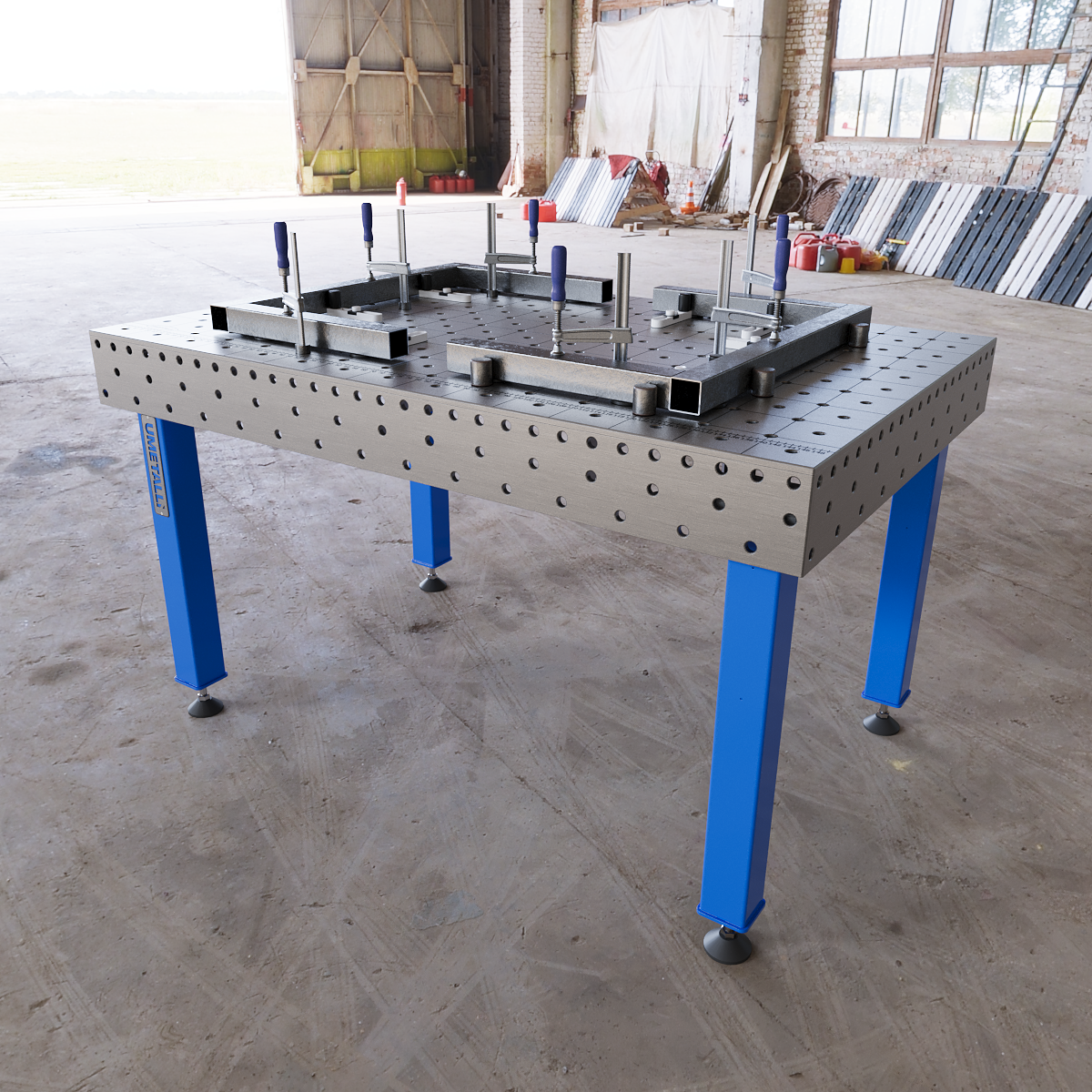

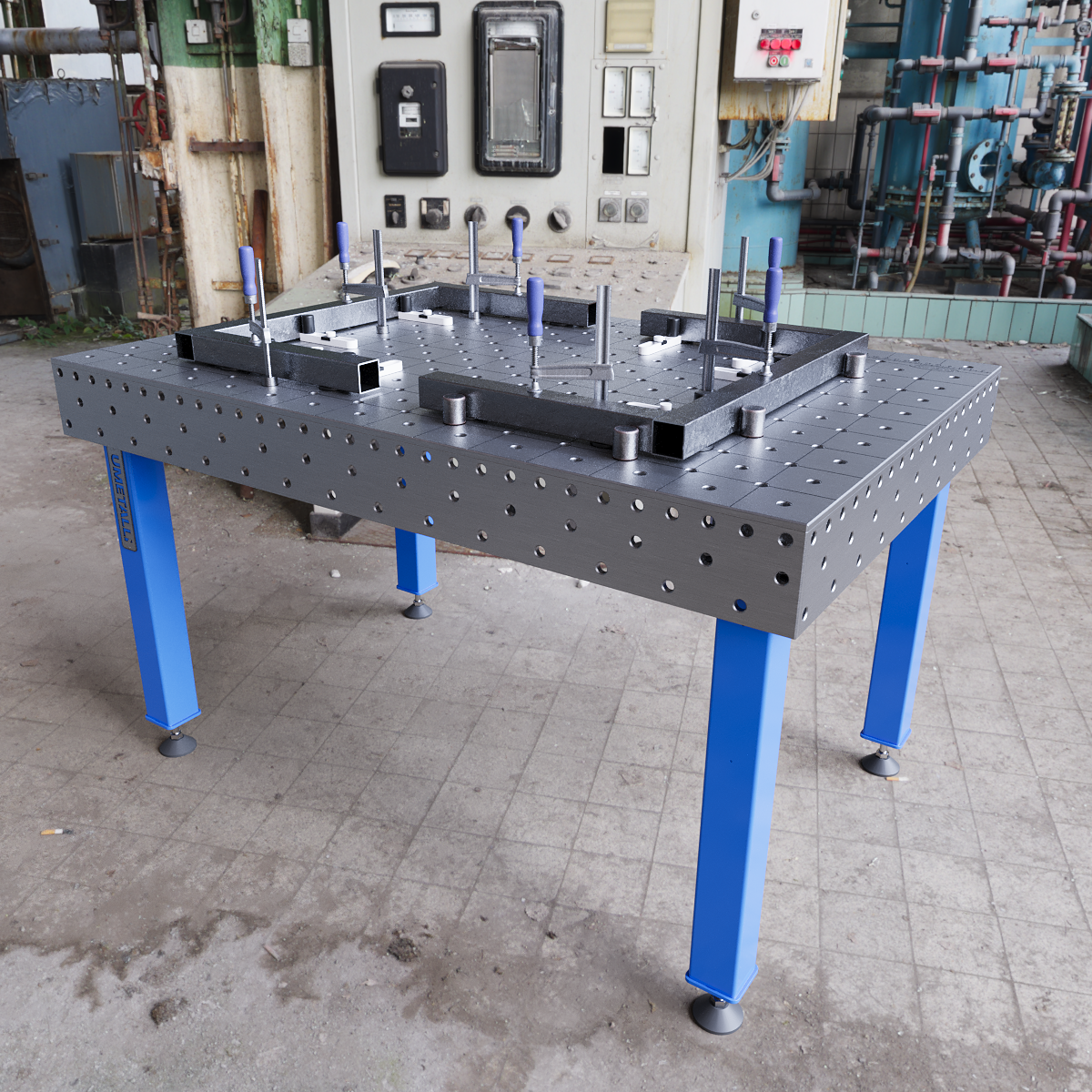

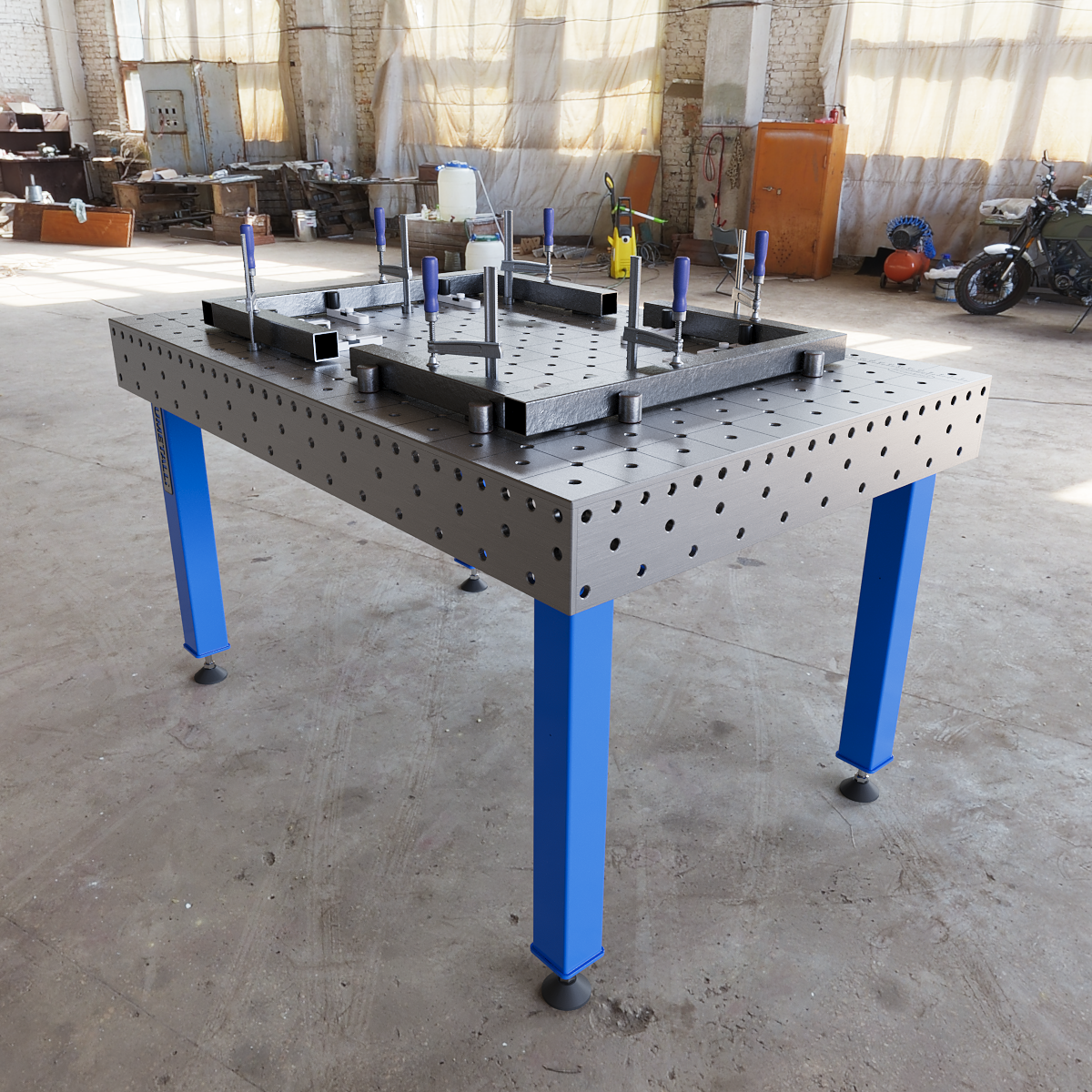

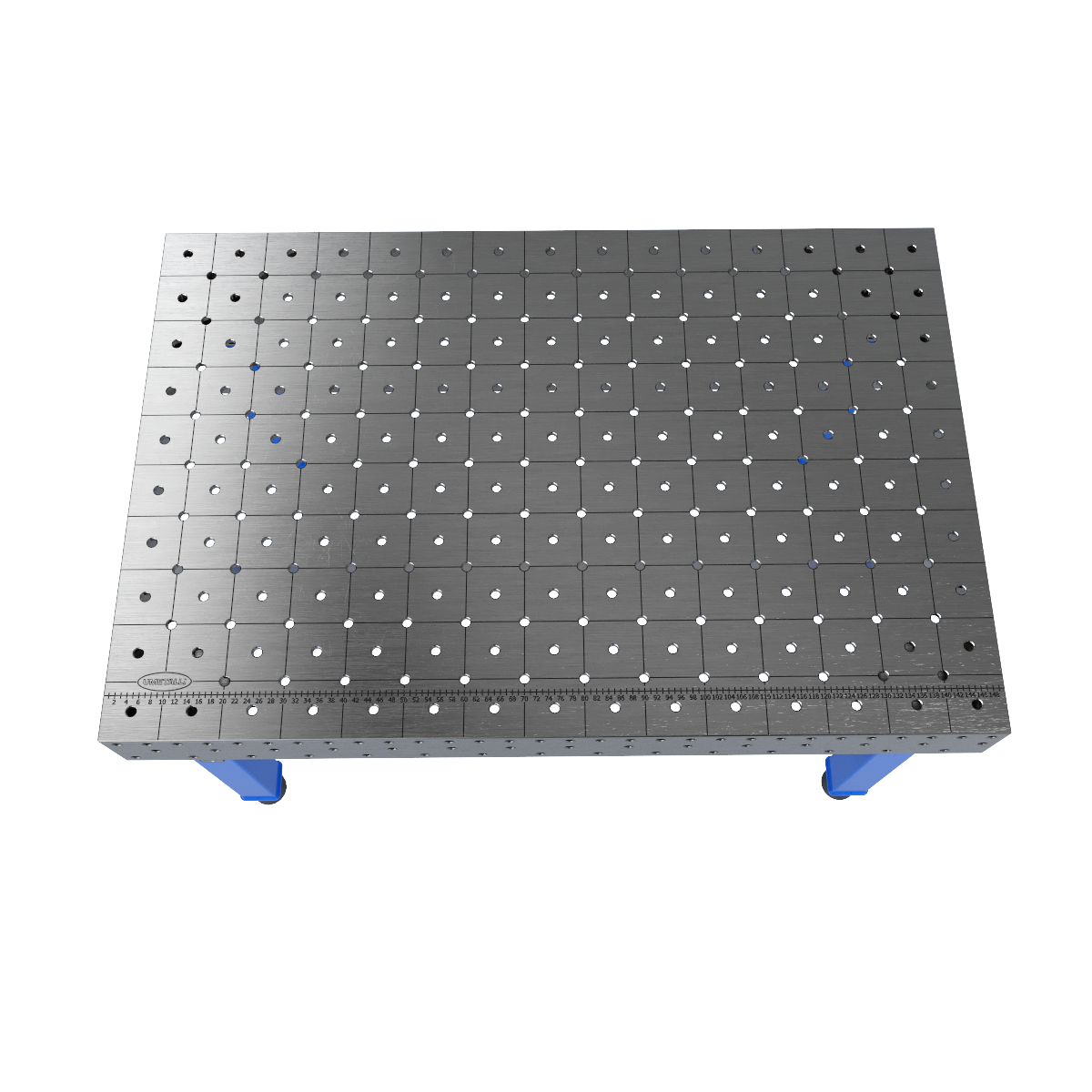

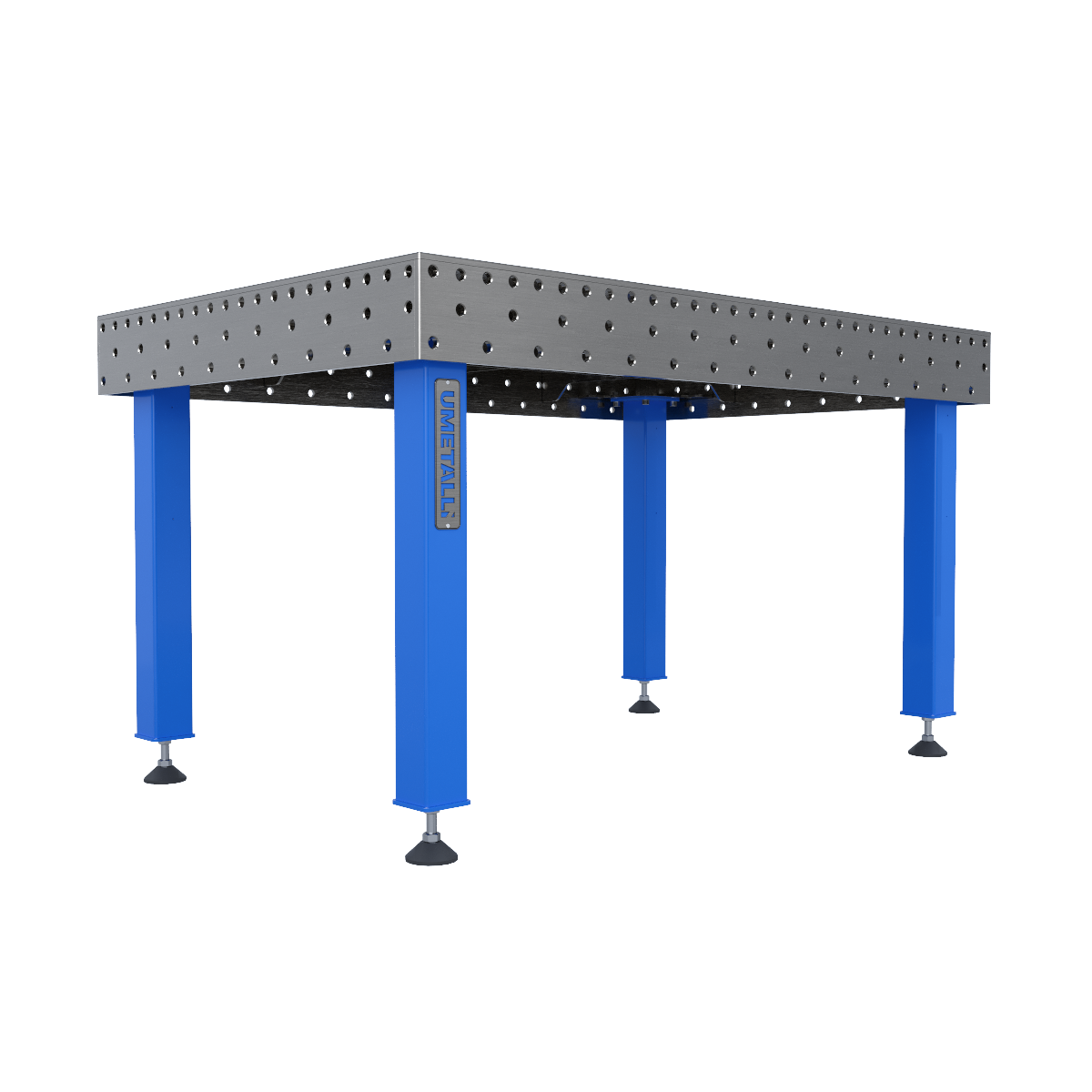

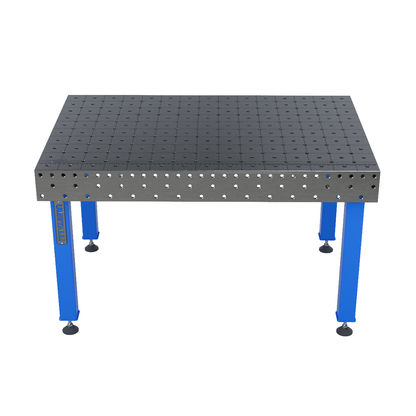

Welding Table PRO 10 1500x1000 Chess is a professional welding table with a 10 mm thick tabletop, ensuring long-lasting durability even under heavy use. The 16 mm diameter holes, arranged in a diagonal grid, allow convenient and quick clamping of fixtures and workpieces, while an integrated ruler makes it easier to accurately position parts during metal assembly and welding. Sturdy supports keep the table stable and user-friendly, which is especially important for projects requiring high precision and safety.

View full details

PRO 10 series

SKU	Working surface	Legs	Height	Leg profile	Maximum load	VAT 25.5%	VAT 0%
WT-P10-M-200100-CH	2000x1000 mm	On castors	820-920 mm	80x80 mm	2000 kg	26 517,00 kr	21 213,60 kr
WT-P10-S-200100-CH	2000x1000 mm	On feet	820-920 mm	80x80 mm	2000 kg	24 157,00 kr	19 325,60 kr
WT-P10-M-150100-CH	1500x1000 mm	On castors	820-920 mm	80x80 mm	2000 kg	21 592,00 kr	17 273,60 kr
WT-P10-S-150100-CH	1500x1000 mm	On feet	820-920 mm	80x80 mm	2000 kg	19 232,00 kr	15 385,60 kr
WT-P10-M-12090-CH	1200x900 mm	On castors	820-920 mm	80x80 mm	2000 kg	16 827,00 kr	13 461,60 kr
WT-P10-S-12090-CH	1200x900 mm	On feet	820-920 mm	80x80 mm	2000 kg	14 307,00 kr	11 445,60 kr
WT-P10-M-12090	1200x900 mm	On castors	820-920 mm	80x80 mm	2000 kg	17 399,00 kr	13 919,20 kr
WT-P10-S-12090	1200x900 mm	On feet	820-920 mm	80x80 mm	2000 kg	14 627,00 kr	11 701,60 kr
WT-P10-M-200100-CH28	2000x1000 mm	On castors	820-920 mm	80x80 mm	2000 kg	27 261,00 kr	21 808,80 kr
WT-P10-S-200100-CH28	2000x1000 mm	On feet	820-920 mm	80x80 mm	2000 kg	24 902,00 kr	19 921,60 kr
WT-P10-M-150100-CH28	1500x1000 mm	On castors	820-920 mm	80x80 mm	2000 kg	22 336,00 kr	17 868,80 kr
WT-P10-S-150100-CH28	1500x1000 mm	On feet	820-920 mm	80x80 mm	2000 kg	19 977,00 kr	15 981,60 kr
WT-P10-M-12090-CH28	1200x900 mm	On castors	820-920 mm	80x80 mm	2000 kg	17 571,00 kr	14 056,80 kr
WT-P10-S-12090-CH28	1200x900 mm	On feet	820-920 mm	80x80 mm	2000 kg	15 051,00 kr	12 040,80 kr
WT-P10-M-12090-D28	1200x900 mm	On castors	820-920 mm	80x80 mm	2000 kg	17 411,00 kr	13 928,80 kr
WT-P10-S-12090-D28	1200x900 mm	On feet	820-920 mm	80x80 mm	2000 kg	15 372,00 kr	12 297,60 kr

Welding Table PRO 10 2000x1000 Chess Mobile

SKU

WT-P10-M-200100-CH

Working surface

2000x1000 mm

Legs

On castors

Height

820-920 mm

Leg profile

80x80 mm

Maximum load

2000 kg

VAT 25.5%

26 517,00 kr

VAT 0%

21 213,60 kr

Welding Table PRO 10 2000x1000 Chess

SKU

WT-P10-S-200100-CH

Working surface

2000x1000 mm

Legs

On feet

Height

820-920 mm

Leg profile

80x80 mm

Maximum load

2000 kg

VAT 25.5%

24 157,00 kr

VAT 0%

19 325,60 kr
